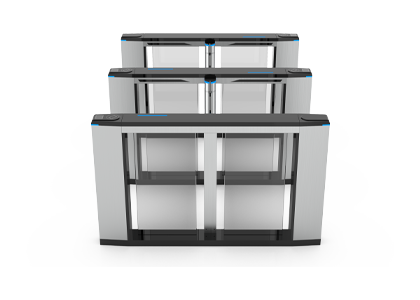

Swing Barrier (NS-SS9-V250)

About this product

  • SUS 304 stainless steel construction with sleek vacuum plating.
  • Top thickness at 1.2mm and body at 1.2mm for durability.
  • Offers single or bi-directional passage.
  • Features 5 pairs of active infrared detectors.
  • Throughput rate achieves 40p/m for efficient user flow. .
  • AC110~220V±10% input with a supercapacitor backup.
Enquiry Resources
Specifications

Product Size single wing:1600*231*980mm dual wing: 1600*312*980mm
Material SUS 304 stainless steel; vacuum plating
Thickness Top:1.2mm+body1.2mm
Pass Width 600mm (≤900mm optional)
Passage Direction Single directional/Bi-directional
Throughput Rate 40p/m
Reaction Time 0.2S
Acoustic Alarm Buzzer Alarm
IP Rating 44
LED Triple Color LED
Driving Voltage DC24V 6.25A
Power Input AC110~220V±10%
Working Temperature -20~+70 C
Sensor 4 pairs of active infrared intrusion detector
Motor Brushless Servo Motor
Mechanism Brushless Speed Gate Mechanism
Back up power Supercapacitor (12V/3A)

Datasheet
NS-SS9-V250
